Wholesale Grade A Quality 3.7V 700mAh LiPo Battery 503738

Categories LiPO Battery, LiPO Battery 25mAh~200mAh

Nominal Voltage
3.7V

Nominal Capacity
700mAh

Nominal Capacity
2.59Wh

INQUIRY TO BUY

Description
Specifications
FAQs
Download

Lithium Polymer Battery

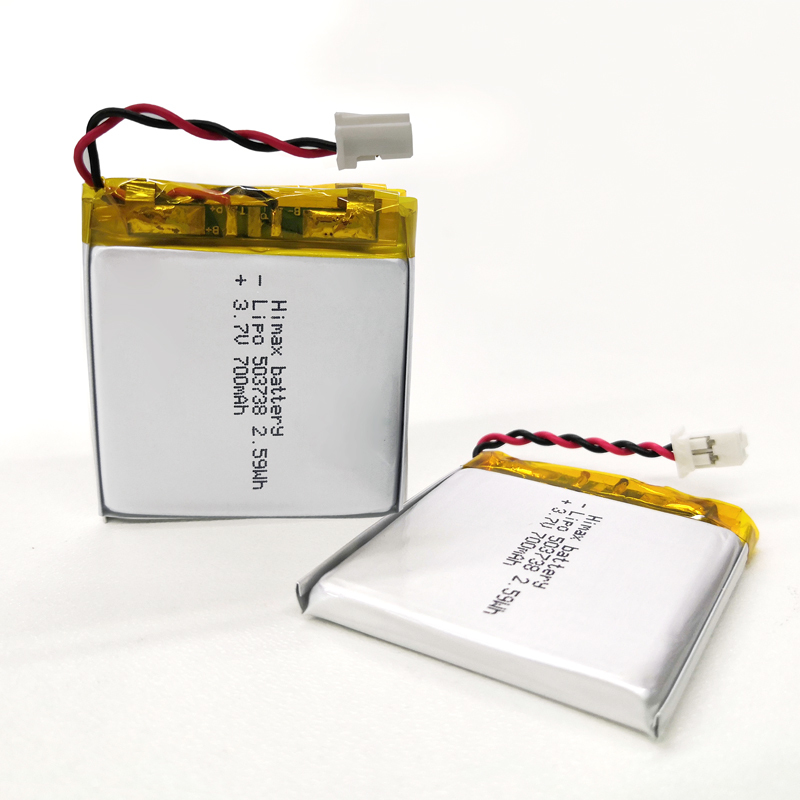

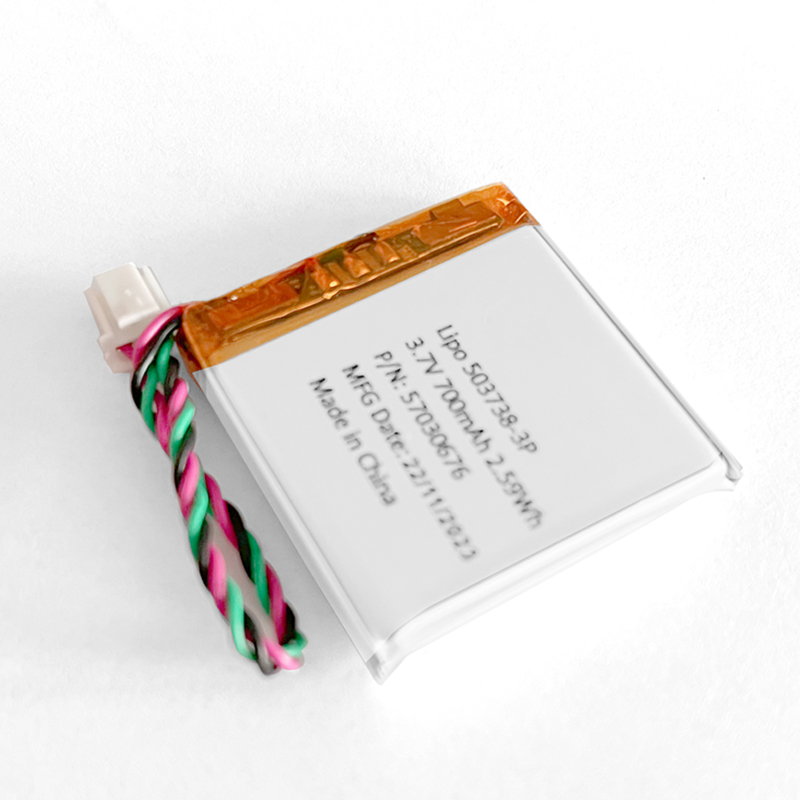

3.7V 700mAh LiPo Battery

High-Performance 3.7V 700mAh LiPo Battery for Industrial Use

The LP503738-700 LiPo battery offers reliable 1C continuous discharge and 2C peak discharge capabilities. With a 10K NTC sensor and the HTA2009H-03P connector, this battery is designed for high-performance applications requiring stability and precision, making it ideal for electronic devices and industrial use.

Wholesale LiPo Battery Solutions with Custom Configurations

Himax Battery specializes in providing premium LiPo batteries for bulk buyers, offering flexible customization options to meet your specific requirements. Our wholesale solutions ensure high-quality, cost-effective batteries for large-scale applications.

Specifications

Customized OEM/ODM 700mah Lipo pack rechargeable Li-ion polymer 3.7V Lithium ion battery

Nominal Voltage

3.7V

Nominal Capacity

700mAh

Energy

2.59Wh

Charge Voltage

4.2V

Discharge cut-off voltage

3.0V

Charge Method

CC/CV

Standard Charge Current

140mA

Max. Charge Current

350mA

Standard Discharge Current

140mA

Max. Continues Discharge current

700mA

Cycle Life

300 times

Dimension

Max 5.2 x37.5 x41.0mm

Weight

Approx 14g

Storage Temperature

-10°C~45°C

Frequently Asked Questions

Himax Battery, as a professional wholesale battery manufacturer, offers a wide range of lithium ion batteries, lithium iron phosphate batteries, nickel metal hydride batteries, and Lipo batteries to meet your different needs with the best ex-factory price and thoughtful customized service.

1. What is the maximum discharge rate for the 3.7V 700mAh LiPo battery?

The 3.7V 700mAh LiPo battery has a continuous discharge rate of 1C and can handle a peak discharge rate of 2C for short bursts, making it suitable for high-performance applications that require rapid energy delivery.

2. Can the 3.7V 700mAh LiPo battery be used for high-temperature environments?

Yes, the battery is designed for stable performance in a variety of conditions, and it includes an NTC (Negative Temperature Coefficient) thermistor to help manage temperature fluctuations, ensuring safety and reliability in diverse environments.

3. What is the connector type for this LiPo battery?

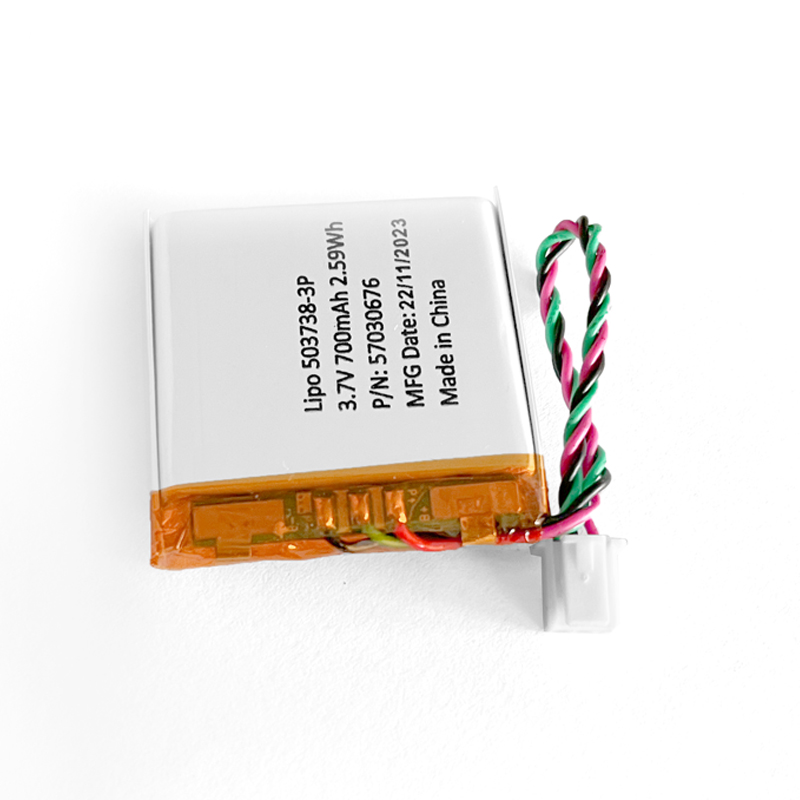

The 3.7V 700mAh LiPo battery comes equipped with an HTA2009H-03P connector, featuring a metal-facing connection with color-coded wires: green for NTC, black for negative, and red for positive.

4. Can I customize the LiPo battery pack with different connectors or configurations?

Yes, Himax Battery offers customization options for the LiPo battery, including the ability to adjust connectors, wire gauges, and configurations to meet specific requirements for industrial or consumer applications.

5. What are the safety features of this LiPo battery?

The 3.7V 700mAh LiPo battery is equipped with a built-in 10K NTC thermistor, which helps protect the battery from overheating, ensuring safe operation. Additionally, the battery is designed with a PCB (Protection Circuit Board) to prevent overcharge, overdischarge, and short circuits.
