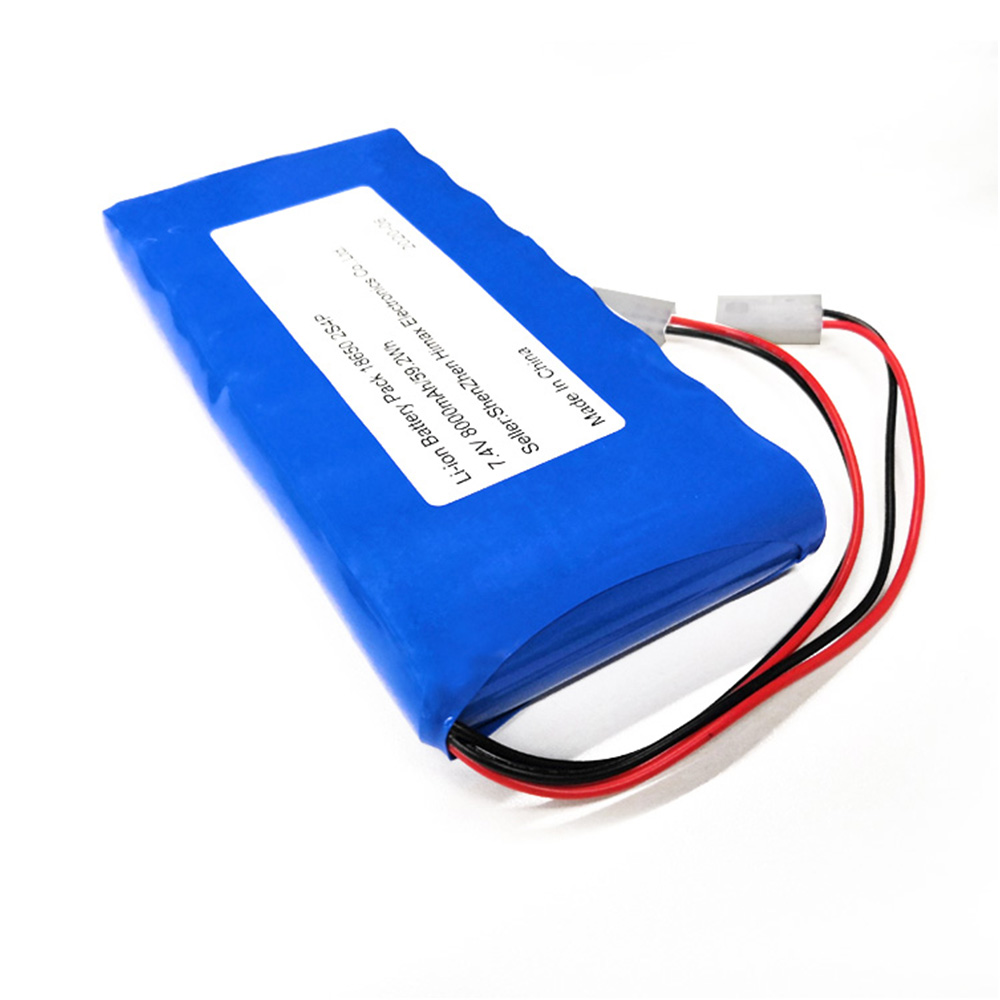

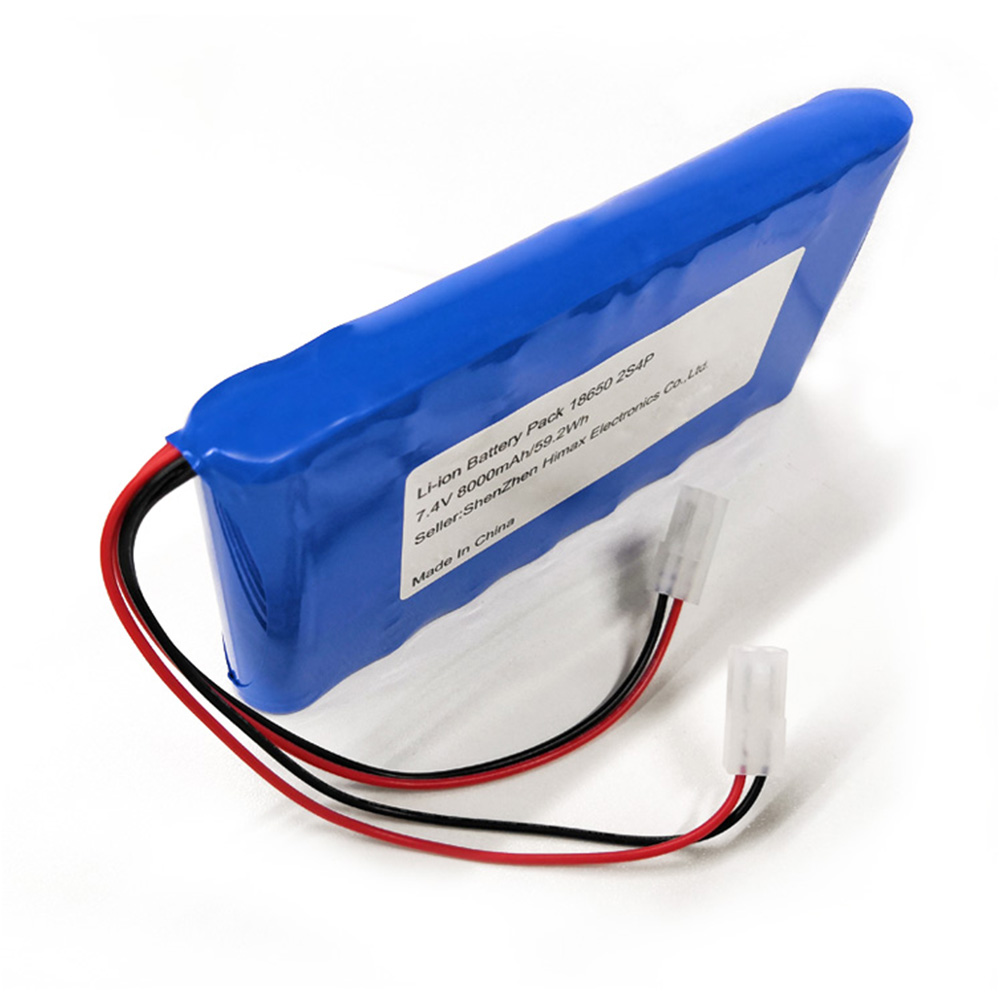

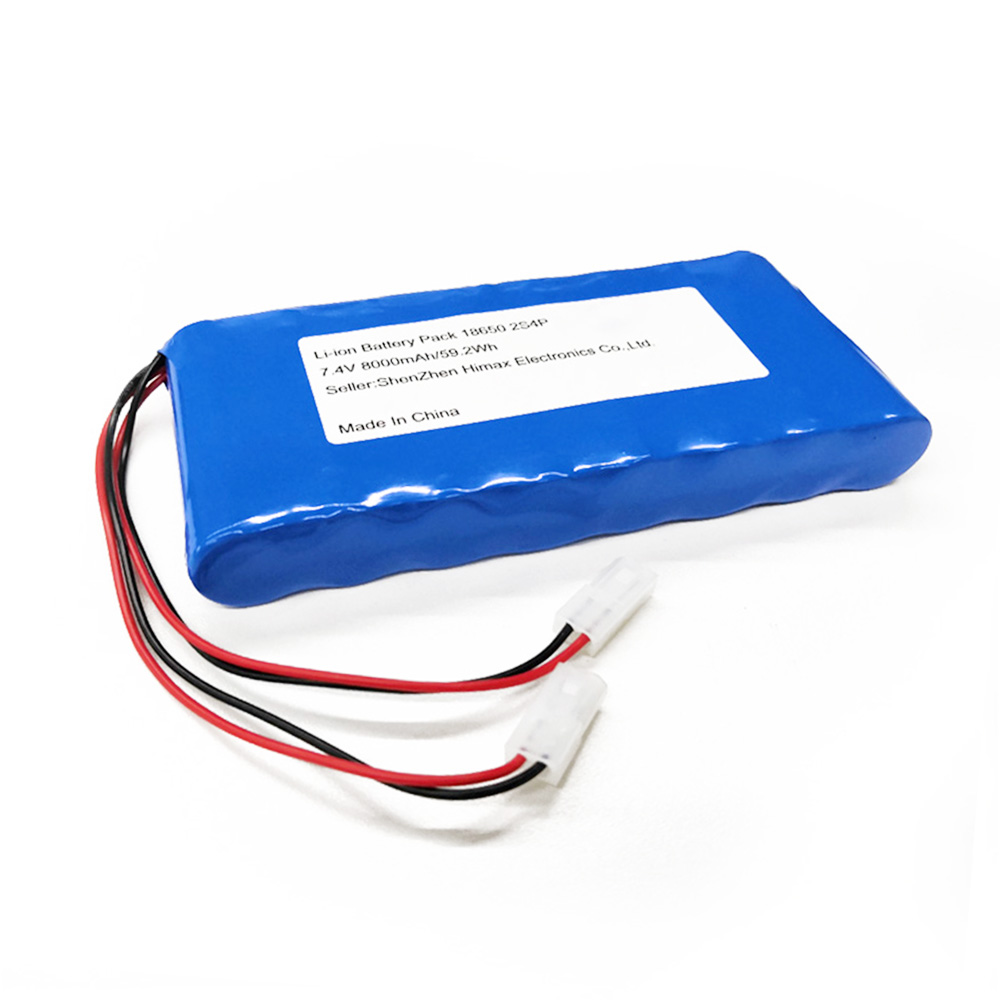

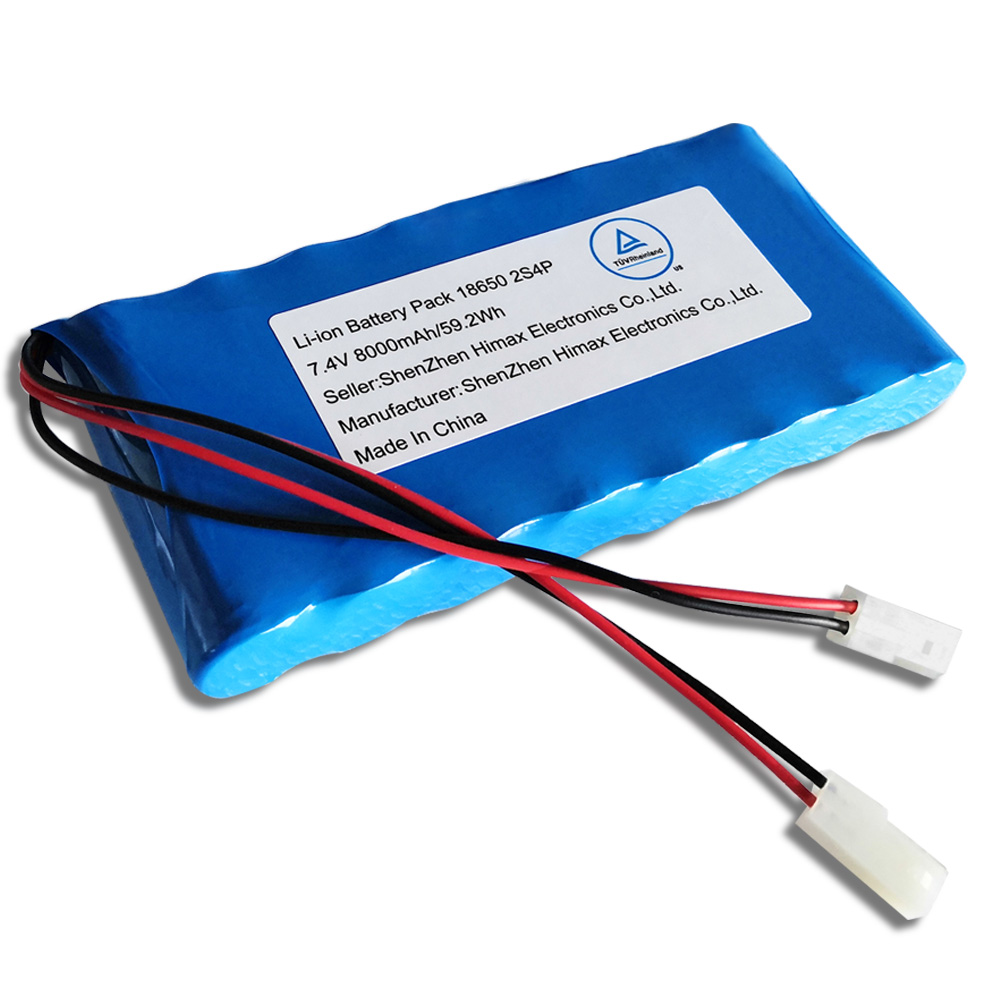

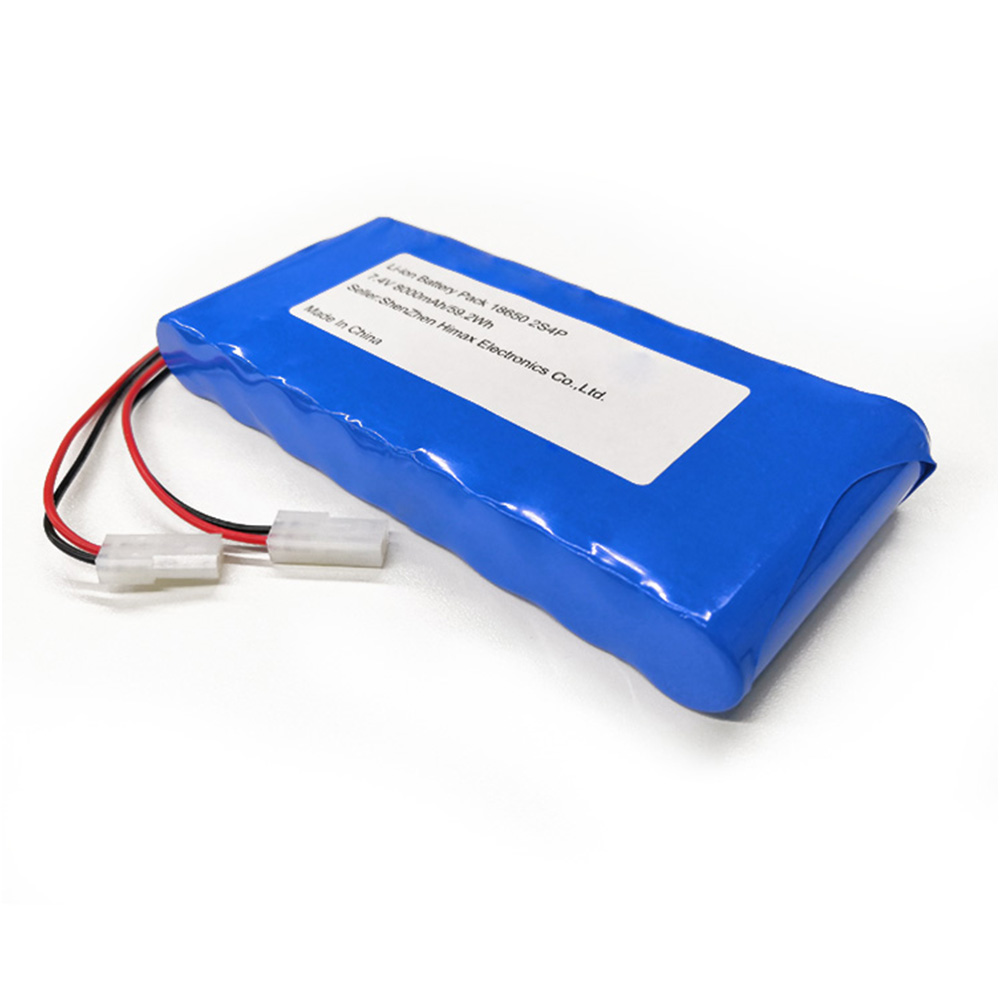

Lithium ion 7.4V 8Ah Battery Pack

Nominal Voltage
7.4V

Nominal Capacity
8Ah



Lithium ion battery pack

7.4V 8000mAh battery

Built-In BMS

The built-in BMS (Battery Management System) protects the battery from overcharge, over-discharge, over-current, and short circuits with excellent self-discharge rate.

Higher Energy Density

The usable capacity doubles compared to that of a lead-acid battery while the weight is 30% less thanks to its significantly higher energy density. HIMAX LiFePO4 battery can be connected in parallel and in series for larger capacity and voltage.

Specifications

7.4V 8000mAh Lithium ion battery pack
Nominal Voltage
7.4V
Nominal Capacity
8Ah
Energy
59.2Wh
Charge Voltage
8.4V
Discharge cut-off voltage
5.5V
Charge Method
CC/CV
Standard Charge Current
1.6A
Max. Charge Current
5A
Standard Discharge Current
1.6A
Max. Continues Discharge current
5A
Cycle Life
300 times (80% SOC)
Internal Impedance
≤110mΩ
Dimension
Max.149 x20.5 x73mm
Weight
Approx.400g
Working Temperature Range
Charge: 0°C~45°C / Discharge: -20°C~60°C
Storage Temperature
-10°C~45°C

Frequently Asked Questions

HimaxBattery is an excellent battery manufacturer, we support best factory price and customized service.
1.What are Lithium-ion (Li-ion) Batteries?
Lithium-ion (Li-ion) batteries are a type of rechargeable battery that uses lithium ions as the charge carriers in its electrochemical reactions. They are widely used in various applications due to their high energy density, lightweight construction, and long lifespan. Lithium-ion batteries have become the standard power source for many portable electronic devices, electric vehicles, and renewable energy storage systems.
2.What are the advantages of lithium ion batteries?
Lithium ion batteries are lightweight, have a high energy density, and offer a longer lifespan compared to other types of batteries.
3.Are lithium-ion batteries safe?
When used correctly, lithium batteries are generally safe. However, mishandling or damage can lead to safety hazards such as overheating or fire.
4.Can I use any charger with lithium ion batteries?
It’s best to use chargers specifically designed for lithium ion batteries to ensure safe and efficient charging.
5.How should I store li-ion batteries?
Store li-ion batteries in a cool, dry place at a partial state of charge to maximize their lifespan.
