Lithium Battery Pack 7.4V 2500mAh Li-ion High Quality Battery Manufacturer

Nominal Voltage
7.4V

Nominal Capacity
2500mAh

Energy
18.5Wh

Lithium-ion Battery

Li-ion 7.4V 2500mAh

Customizable 2S1P Battery Solutions for Bulk Procurement

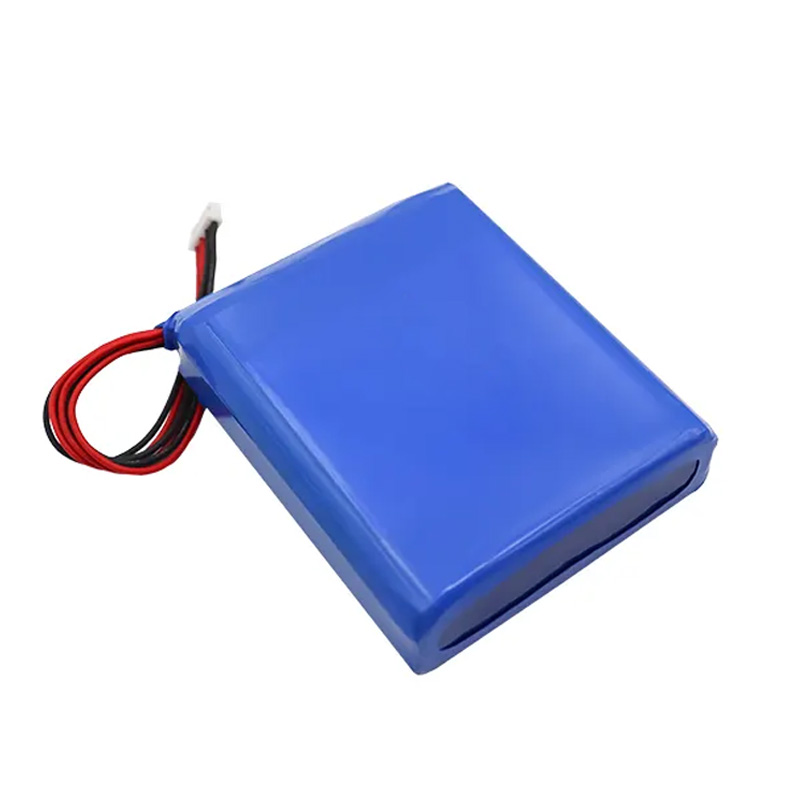

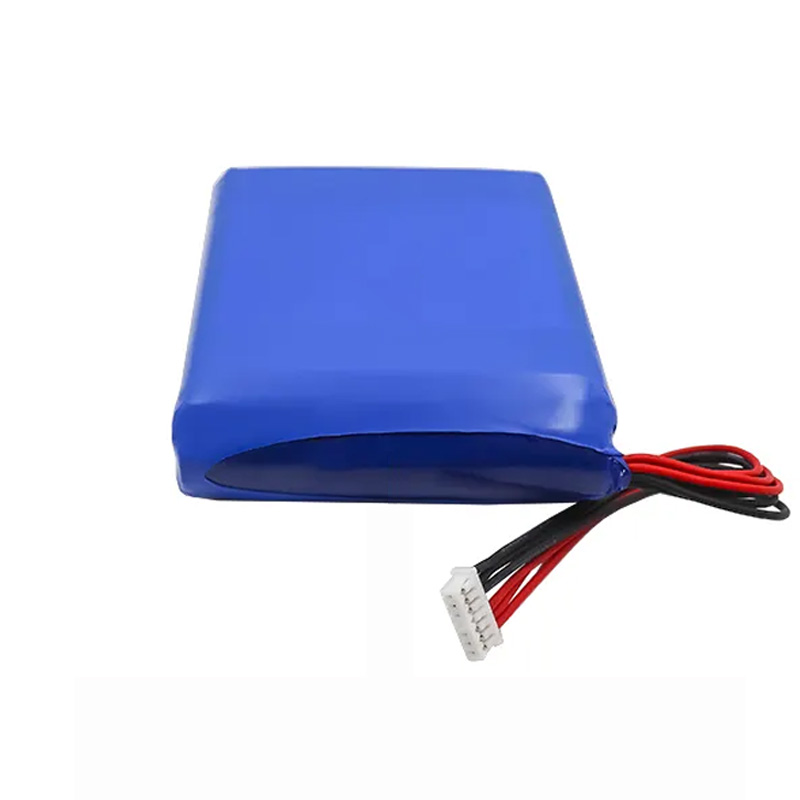

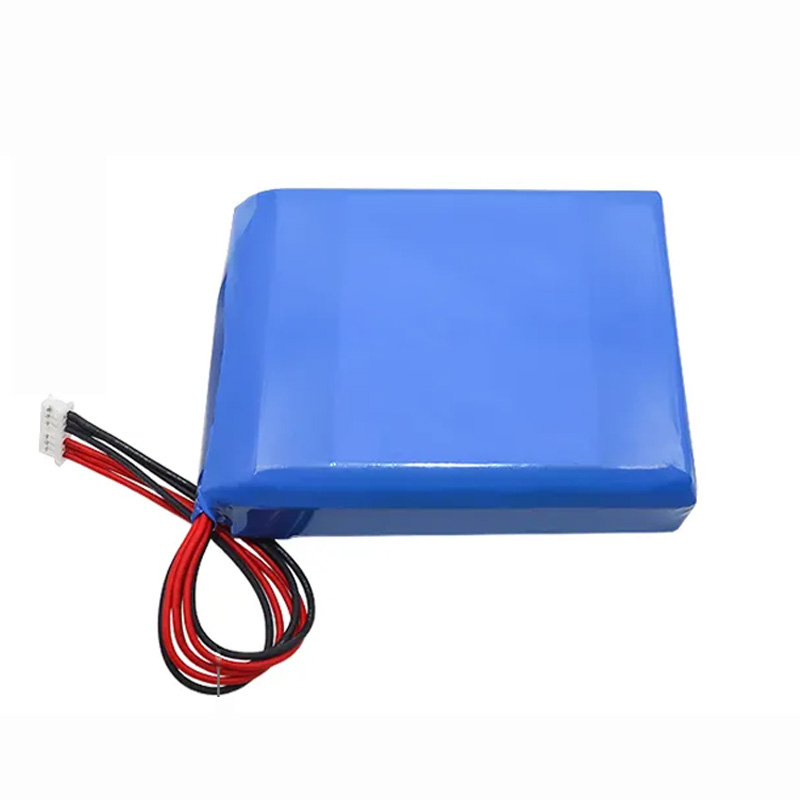

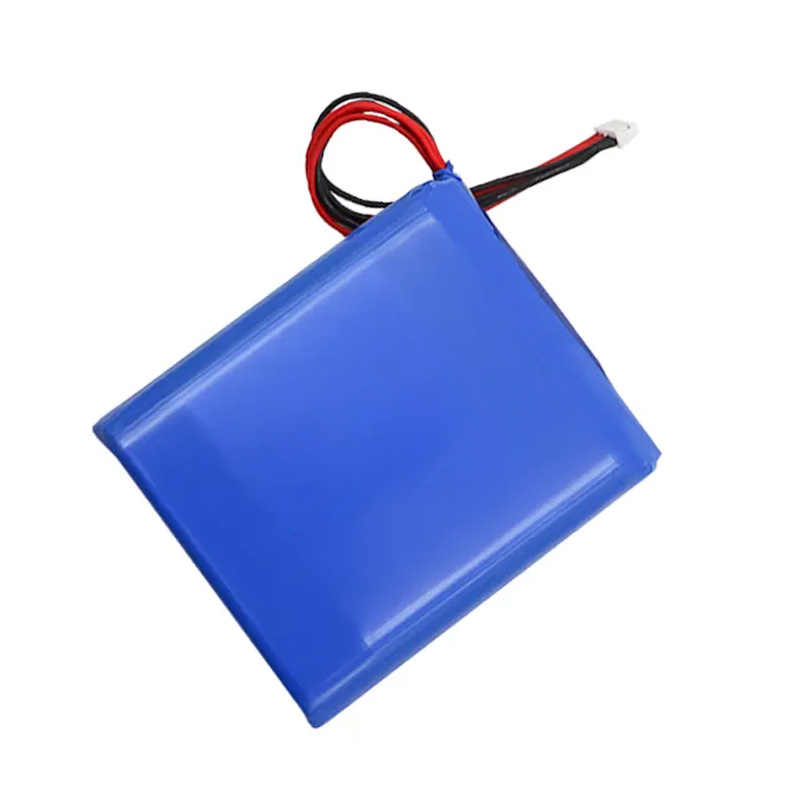

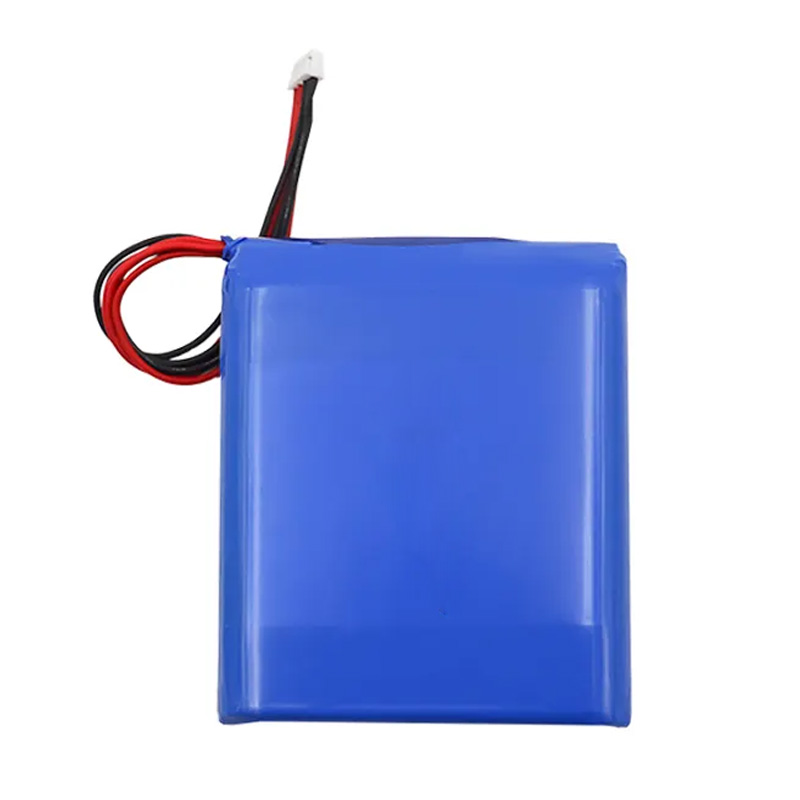

Himax, a professional battery manufacturer, offers tailored 7.4V 2.5Ah (635060-2500mAh) lithium-ion packs optimized for bulk buyers. This 2S1P configuration integrates high-performance ternary cells (2C rate) with a 5A protection board and 5264-2P reverse terminals, ensuring reliable power delivery for industrial or consumer applications. Featuring a compact 13x50x64mm footprint, left-side wiring with UL1571-certified AWG22 cables (100mm exposed), and blue PVC insulation, it’s ideal for OEMs seeking scalable, space-efficient battery packs for drones, portable medical devices, or IoT tools.

High-Density Power with Streamlined Bulk Integration

Designed for wholesale partners, this ternary-based 7.4V battery combines energy density (2500mAh capacity) and durability with a 2C discharge rate. Its 2S1P structure, reinforced by a 5A BMS and reverse-terminal connectivity, supports stable performance in tight spaces. The UL1571-compliant wiring, left-exit design, and rugged blue PVC casing simplify mass production integration for robotics, security systems, or handheld electronics. Perfect for bulk procurement, Himax ensures flexible customization (dimensions, wiring, connectors) to meet diverse OEM demands while adhering to strict safety standards.

Specifications

Custom battery rechargeable lithium ion battery LIPO 7.4V 2.5Ah 2S1P
Nominal Voltage
7.4V
Nominal Capacity
2500mAh
Energy
18.5Wh
Charge Voltage
8.4V
Discharge cut-off voltage
6.0V
Charge Method
CC/CV
Standard Charge Current
500mA
Max. Charge Current
2500mA
Standard Discharge Current
500mA
Max. Continues Discharge current
4000mA
Cycle Life
300 times
Dimension
Max 13*50.5*64mm
Weight
Approx 102g
Storage Temperature
0°C~45°C

Frequently Asked Questions

Lithium ion battery pack answers, if you do not find the answer you are looking for, please contact us. We’ll get back to you within 24 hours.
Can Himax, as a battery factory, provide customized lithium ion battery solutions?
Certainly! Himax battery factory, specializes in advanced battery manufacturing and offers highly tailored customization services. Whether you require a unique capacity, specific voltage, or a particular form factor for your lithium ion batteries, we have the expertise and resources to meet your exact needs. From small – scale prototype development to large – scale wholesale orders, Himax is fully equipped to handle all customization requests with precision and efficiency.
What are the wholesale prices for lithium ion batteries from Himax?
At Himax, our battery wholesale prices are structured based on multiple factors such as battery type, capacity, order quantity, and customization requirements. For standard lithium ion batteries, we offer highly competitive pricing in the market. In case of large – volume wholesale orders, we provide even more attractive discounts. Please reach out to us with detailed information about the batteries you need, and our dedicated sales team at Himax will promptly provide you with a comprehensive and accurate quote.
How does the manufacturing process of lithium ion batteries work at Himax factory?
At Himax battery factory, the manufacturing process of lithium ion batteries is a highly sophisticated and quality – driven operation. It commences with the meticulous selection of top-grade raw materials. Subsequently, through a series of precise processes including electrode preparation, cell assembly, electrolyte filling, and rigorous final testing, we ensure that every single battery leaving our factory adheres to the strictest quality standards. Our state-of-the-art manufacturing technology and a team of experienced professionals enable Himax to produce high-performance lithium ion batteries suitable for a wide range of applications, be it for wholesale distribution or custom – made products.
How long does it take for Himax to deliver customized lithium ion batteries?
The delivery time for customized lithium ion batteries at Himax depends on the complexity of the customization and the size of the order. For small – scale custom orders, it typically takes around 2 weeks. In the case of large-scale wholesale custom orders, the delivery time may range from 2 weeks to 4 weeks. At Himax, we will communicate with you in detail about the expected delivery schedule as soon as we receive your specific customization requirements, ensuring complete transparency and enabling you to plan your projects effectively.
What is the production capacity of Himax battery factory for lithium ion batteries?
For wholesale orders, we have the flexibility to adjust our production capacity according to the market demand. Moreover, when it comes to custom-made lithium ion batteries, we allocate sufficient resources to guarantee timely production and on – time delivery, meeting the diverse needs of our customers.

Download

Didn’t find the battery you were looking for or need a customized battery please contact us.
