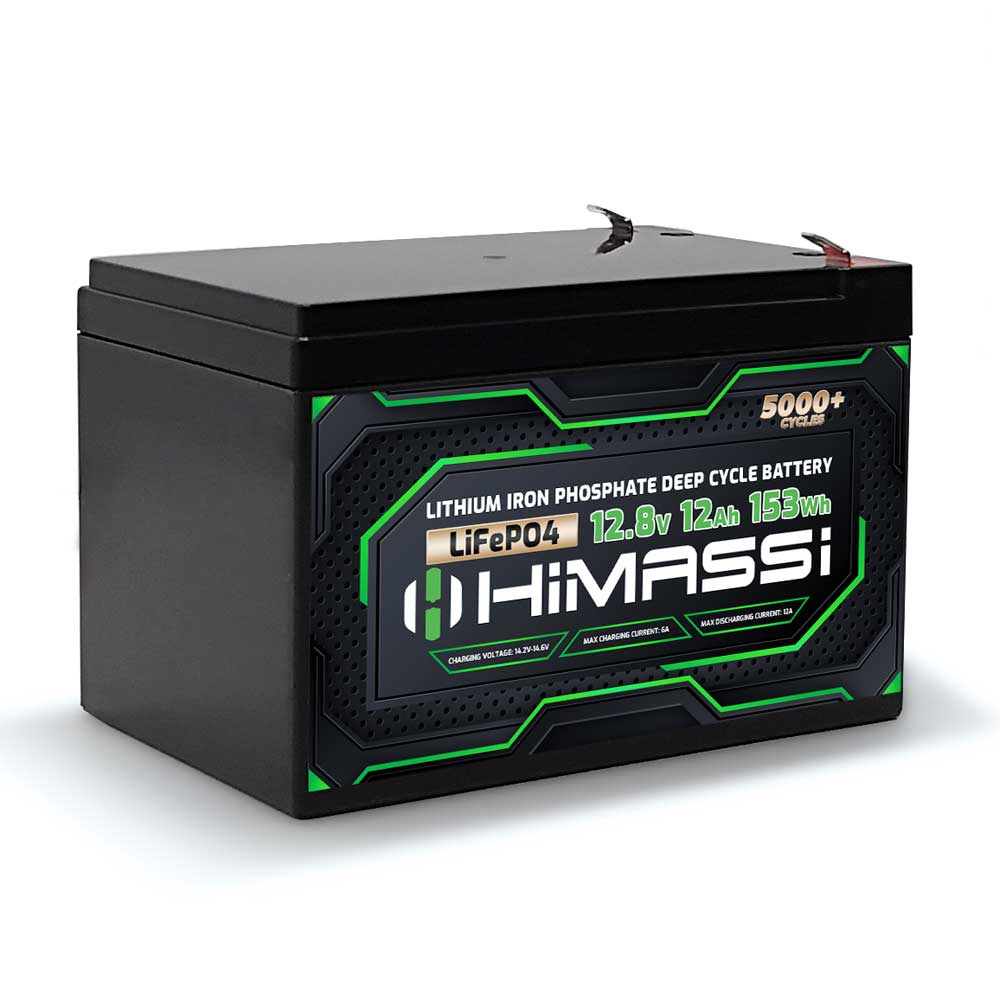

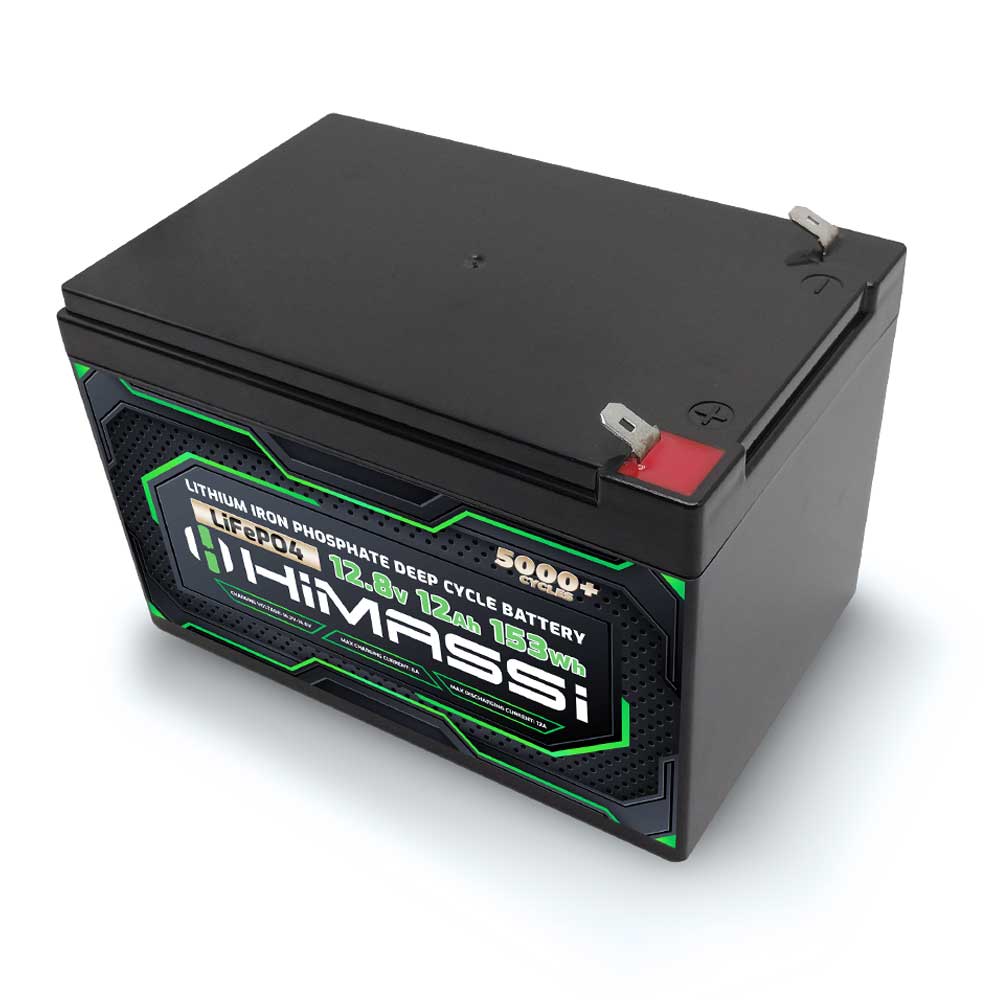

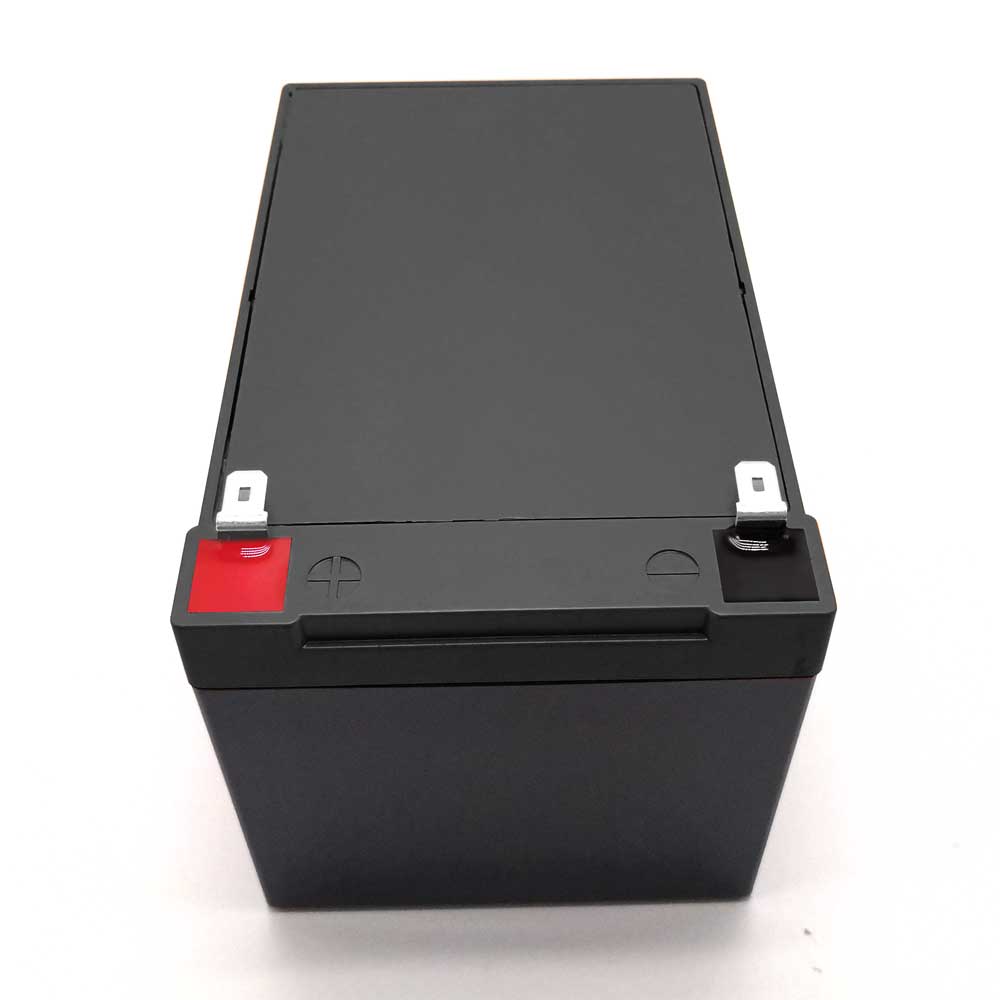

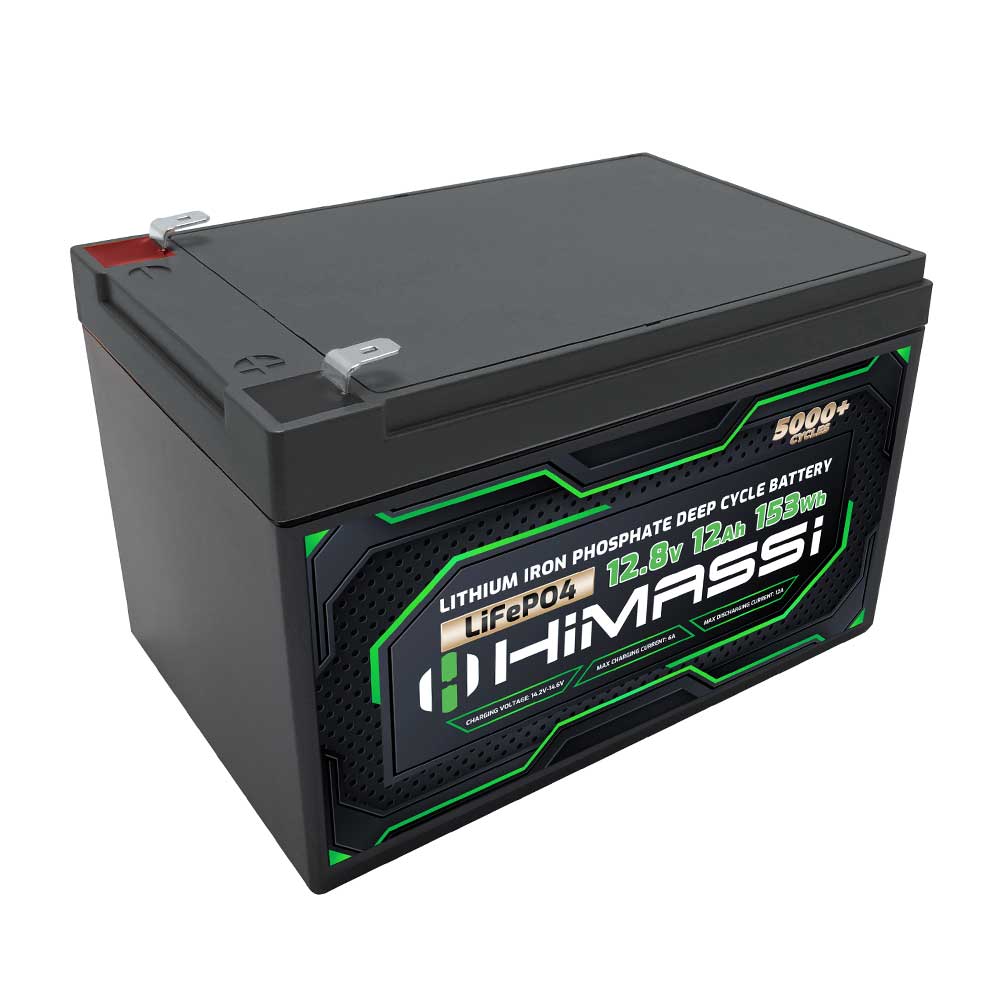

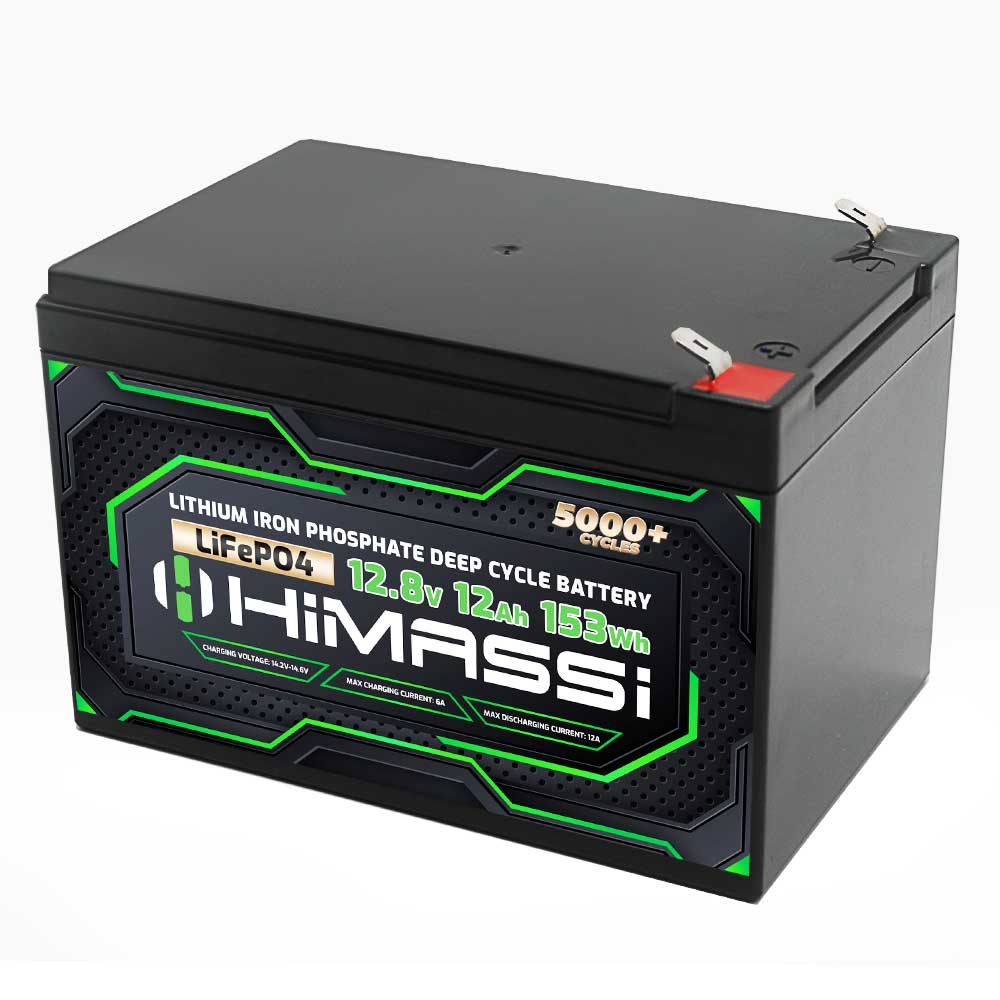

LiFePO4 Deep Cycle Battery Pack 12V 12Ah

Nominal Voltage
12.8V

Nominal Capacity
12Ah

12V 12Ah LiFePO4 Battery

Lithium iron phosphate battery pack 12.8V 12Ah

Long Cycle Life & Good Stability

【Long Cycle Life & Good Stability】HiMASSi LiFePO4 battery provides 2000+ cycles at 100% DOD. Provide long storage life with few limiting conditions and offers problem-free charge after long storage. High temperature resistance, good capacity stability for high temperature charging and good storage performance. Operating temperatures: Charge 32°F~122°F, Discharge -4°F~140°F.

Safe & Economical

【Safe & Economical】HiMASSi LiFePO4 battery has built-in BMS to protect battery from Over-charge, Over-discharge, Over-current, Short Circuit, etc. LiFePO4 battery is Environmentally friendly, which will not cause environmental and sound pollution.

Specifications

LiFePO4 deep cycle battery pack 12V 12Ah for monitoring, emergency lights, CCTV—Himax battery supports custom battery packs, and you can find the best factory prices here.
Nominal Voltage
12.8V
Nominal Capacity
12Ah
Energy
153.6Wh
Cycle Life
>2000 cycles @0.2C 100%DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.2C
Efficiency of Discharge
96~99% @0.2C
BMS Functions
Over charge, over discharge, over current, short circuit and temperature protection
Charge Voltage
Charge Voltage
Charge Voltage
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charge Current
2.4A
Max. Charge Current
6A
Standard Discharge Current
2.4A
Max Continuous Discharge Current
12A
Discharge Cut-off Voltage
10V±0.5V
Storage Temperature
Storage Temperature
IP Class
IP65
Plastic Case
ABS
Approx. Dimensions
L151XW98xH97mm
Approx. Weight
1.5kG

Frequently Asked Questions

Lithium iron phosphate deep cycle battery pack answers, if you do not find the answer you are looking for, please contact us. We’ll get back to you within 24 hours.
1. What are LiFePO4 (Lithium Iron Phosphate) Batteries?
LiFePO4 (Lithium Iron Phosphate) batteries are a type of deep cycle lithium-ion rechargeable battery known for their high energy density, long lifespan, and enhanced safety characteristics. They use lithium iron phosphate as the cathode material, which offers several advantages over other types of phosphate-based lithium-ion battery.
2. Are LiFePO4 batteries safe?
Yes, LiFePO4 batteries are considered safe due to their stable chemistry and thermal stability. They are less prone to thermal runaway, overheating, and fire risks compared to some other lithium-ion chemistries.
3. What are the advantages of deep cycle LiFePO4 (Lithium Iron Phosphate) batteries?
The advantages of LiFePO4 batteries include enhanced safety, long cycle life, high thermal stability, fast charging capability, high power density, environmental friendliness, low self-discharge rate, and maintenance-free operation. These features make them well-suited for a wide range of applications, including electric vehicles, renewable energy storage systems, backup power systems, and portable electronics.
4. What are the typical applications of LiFePO4 batteries?
LiFePO4 batteries are commonly used in a variety of applications, including electric vehicles (EVs), solar energy storage systems, marine propulsion, RVs, backup power systems, and portable electronics.
5. Can LiFePO4 batteries be replacement for Lead-Acid batteries?
Yes, LiFePO4 batteries can be used as a drop-in replacement for lead-acid batteries in many applications. They offer several advantages over lead-acid batteries, including higher energy density, longer cycle life, and faster charging capabilities.
