LiFePO4 Battery Pack 12V 15Ah

Nominal Voltage
12.8V

Nominal Capacity
15Ah

12V 15Ah

LiFePO4 battery 12.8V 15Ah

Lightweight design

The 12V 15AH lithium battery is lightweight and weighs only 2.4kg, much lighter than the lead-acid one. The lithium battery is easy to take outdoors and place in any position that lead-acid ones can not achieve.

Long service life

Himax lithium battery (LiFePO4) can be recharged more than 5000 times in a deep cycle to achieve a longer cycle life. More than 8 times higher than lead-acid batteries (generally only 300-400 cycles can be charged)

Specifications

12V 15Ah Lithium Battery (LiFePO4)
Nominal Voltage
12.8V
Nominal Capacity
16Ah
Minimum Capacity
15Ah
Energy
204.8Wh
Cycle Life
>2000 cycles @0.2C 100%DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.2C
Efficiency of Discharge
96~99% @0.2C
BMS Functions
Over charge, over discharge, over current, short circuit and temperature protection
Charge Voltage
14.2-14.6V
Charge Mode
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charge Current
3.2A
Max. Charge Current
8A
Standard Discharge Current
3.2A
Max Continuous Discharge Current
16A
Discharge Cut-off Voltage
10V±0.5V
Storage Temperature
-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class
IP65
Plastic Case
ABS

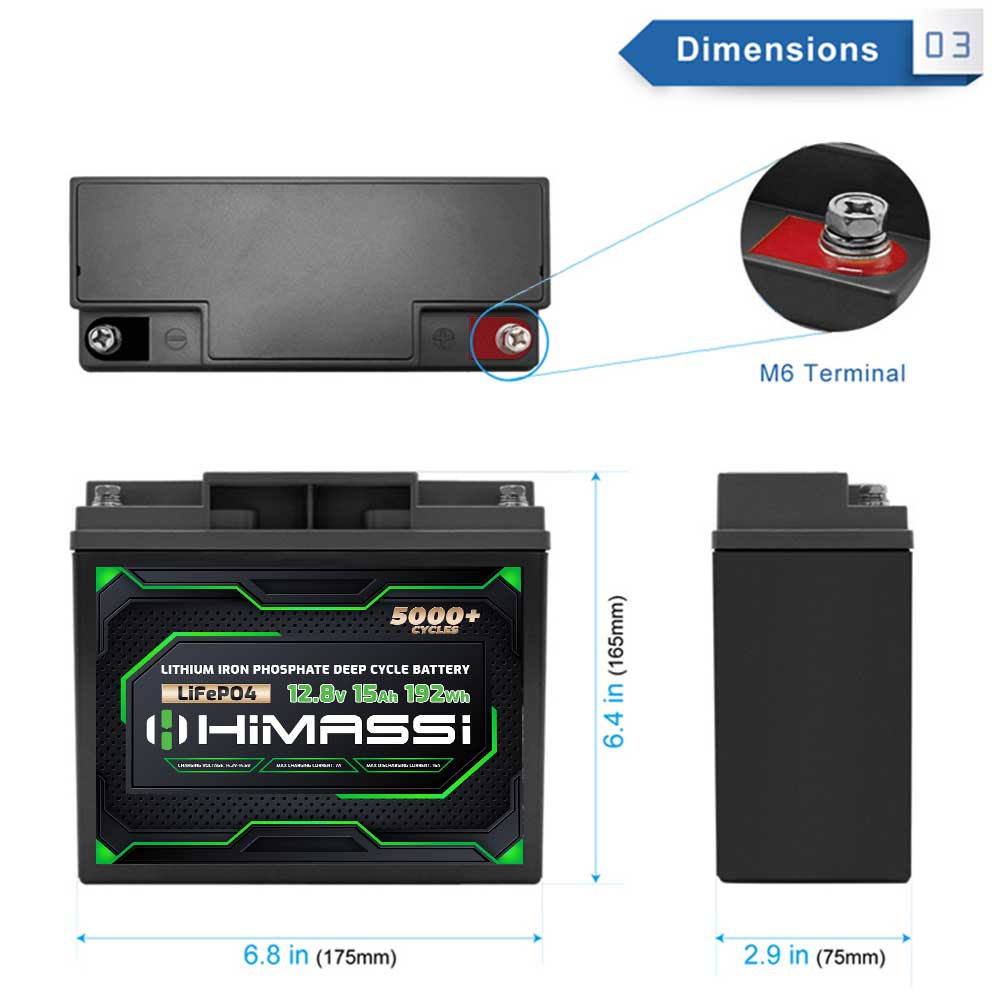

Approx. Dimensions
L181xW76xH165mm (2.4kG)

Frequently Asked Questions

Lithium iron phosphate deep cycle battery pack answers, if you do not find the answer you are looking for, please contact us. We’ll get back to you within 24 hours.
1. What are LiFePO4 (Lithium Iron Phosphate) Batteries?
LiFePO4 (Lithium Iron Phosphate) batteries are a type of deep cycle lithium-ion rechargeable battery known for their high energy density, long lifespan, and enhanced safety characteristics. They use lithium iron phosphate as the cathode material, which offers several advantages over other types of phosphate-based lithium-ion battery.
2. Are LiFePO4 batteries safe?
Yes, LiFePO4 batteries are considered safe due to their stable chemistry and thermal stability. They are less prone to thermal runaway, overheating, and fire risks compared to some other lithium-ion chemistries.
3. What are the advantages of deep cycle LiFePO4 (Lithium Iron Phosphate) batteries?
The advantages of LiFePO4 batteries include enhanced safety, long cycle life, high thermal stability, fast charging capability, high power density, environmental friendliness, low self-discharge rate, and maintenance-free operation. These features make them well-suited for a wide range of applications, including electric vehicles, renewable energy storage systems, backup power systems, and portable electronics.
4. What are the typical applications of LiFePO4 batteries?
LiFePO4 batteries are commonly used in a variety of applications, including electric vehicles (EVs), solar energy storage systems, marine propulsion, RVs, backup power systems, and portable electronics.
5. Can LiFePO4 batteries be replacement for Lead-Acid batteries?
Yes, LiFePO4 batteries can be used as a drop-in replacement for lead-acid batteries in many applications. They offer several advantages over lead-acid batteries, including higher energy density, longer cycle life, and faster charging capabilities.

Download

For more battery customization, please contact us.
