LiFePO4 Battery 48V 100Ah

Nominal Voltage
51.2V

Nominal Capacity
100Ah



Applications:
Home energy storage, solar off-grid systems, farm pumps, lead-acid battery replacement

LiFePO4 Batteries

LiFePO4 Battery 48v 100ah

High quality lead acid replacement batteries

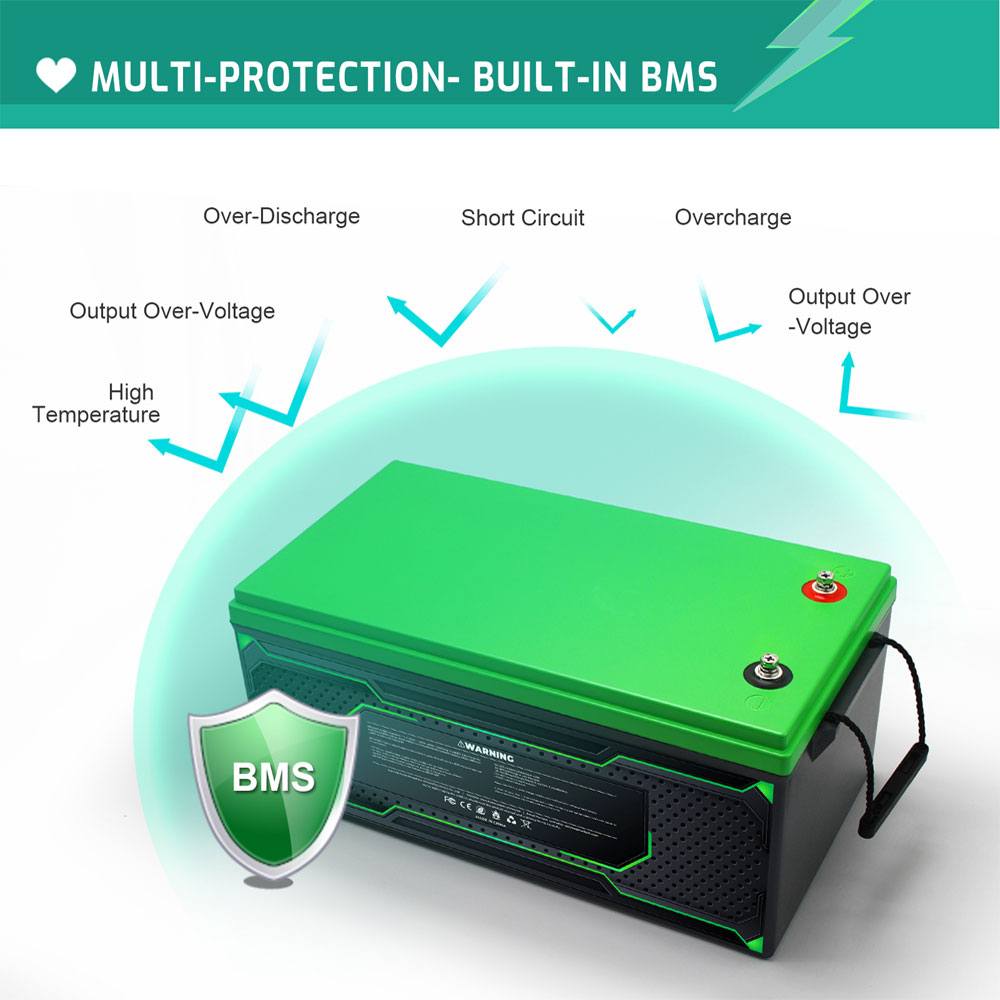

Himax LiFePO4 batteries are designed for long-term use and can last up to 10 times longer than lead-acid batteries, with 3,000-5,000 deep discharge cycles. These LiFePO4 batteries also have an internal Battery Management System (BMS), which protects them from common battery failures like high and low voltage, short circuits, and hot and cold temperatures. Compared to a conventional lead acid battery, our rechargeable LiFePO4 Batteries are 1/5th the weight for the same amount of usable power, weighing in at just 80.8 lbs. They, too, provide up to 3x more power in the same physical space and charge 5x faster.

Leading battery technology

48V 100AH lithium-ion batteries have exceptional longevity since they are manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance & greater power, letting you use the battery more freely. Our batteries are more cost-effective, so when factoring time and cost into your purchase, our lithium-ion battery banks come out ahead every time. It can support fast charging and solar panel charging.

Specifications

The best battery supplier please find Himax battery, we offer you 48V 100AhLiFePO4 battery with the best factory price
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Energy
5120Wh
Cycle Life
>2000 cycles @0.2C 100%DOD
BMS Functions
Over charge, over discharge, over current, short circuit and temperature protection
Charge Voltage
56.8-58.4V
Charge Mode
0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge Current
20A
Max. Charge Current
50A
Standard Discharge Current
20A
Max Continuous Discharge Current
100A
Discharge Cut-off Voltage
40V±0.5V
Storage Temperature
-20 ℃ to 45 ℃ (-4℉ to 113℉) @60±25% Relative Humidity
IP Class
IP65
Plastic Case
ABS
Approx. Dimensions
L520xW269xH220mm
Approx. Weight
39.5kG

Frequently Asked Questions

HimaxBattery is an excellent battery manufacturer, we support best factory price and customized service.
1: What are LiFePO4 (Lithium Iron Phosphate) Batteries?
LiFePO4 (Lithium Iron Phosphate) batteries are a type of deep cycle lithium-ion rechargeable battery known for their high energy density, long lifespan, and enhanced safety characteristics. They use lithium iron phosphate as the cathode material, which offers several advantages over other types of phosphate-based lithium-ion battery.
2: Are LiFePO4 batteries safe?
Yes, LiFePO4 batteries are considered safe due to their stable chemistry and thermal stability. They are less prone to thermal runaway, overheating, and fire risks compared to some other lithium-ion chemistries.
3: What are the advantages of deep cycle LiFePO4 (Lithium Iron Phosphate) batteries?
The advantages of LiFePO4 batteries include enhanced safety, long cycle life, high thermal stability, fast charging capability, high power density, environmental friendliness, low self-discharge rate, and maintenance-free operation. These features make them well-suited for a wide range of applications, including electric vehicles, renewable energy storage systems, backup power systems, and portable electronics.
4: What are the typical applications of LiFePO4 batteries?
LiFePO4 batteries are commonly used in a variety of applications, including electric vehicles (EVs), solar energy storage systems, marine propulsion, RVs, backup power systems, and portable electronics.
5: Can LiFePO4 batteries be replacement for Lead-Acid batteries?
Yes, LiFePO4 batteries can be used as a drop-in replacement for lead-acid batteries in many applications. They offer several advantages over lead-acid batteries, including higher energy density, longer cycle life, and faster charging capabilities.
