A 12V 150Ah LiFePO4 battery, such as those produced by **Himax**, provides a higher energy capacity while maintaining a compact design. This makes it an ideal solution for demanding applications like off-grid solar systems, electric boats, and RVs, where both power and space efficiency are critical. Businesses involved in **battery wholesale procurement** can benefit from sourcing these high-performance batteries directly from **Himax battery factory**, ensuring reliable energy storage and long-lasting performance for various applications.
Superior Safety and Fast Charging
LiFePO4 batteries are renowned for their excellent thermal stability and safety features, significantly reducing the risks of overheating or fire. The 12V 150Ah model offers fast charging capabilities without compromising safety, making it perfect for applications such as emergency backup power, industrial machinery, and energy storage systems. By working with **Himax** for **battery wholesale procurement**, businesses gain access to top-tier products that meet the highest safety and quality standards, ensuring secure and efficient energy solutions across a range of industries.
Specifications

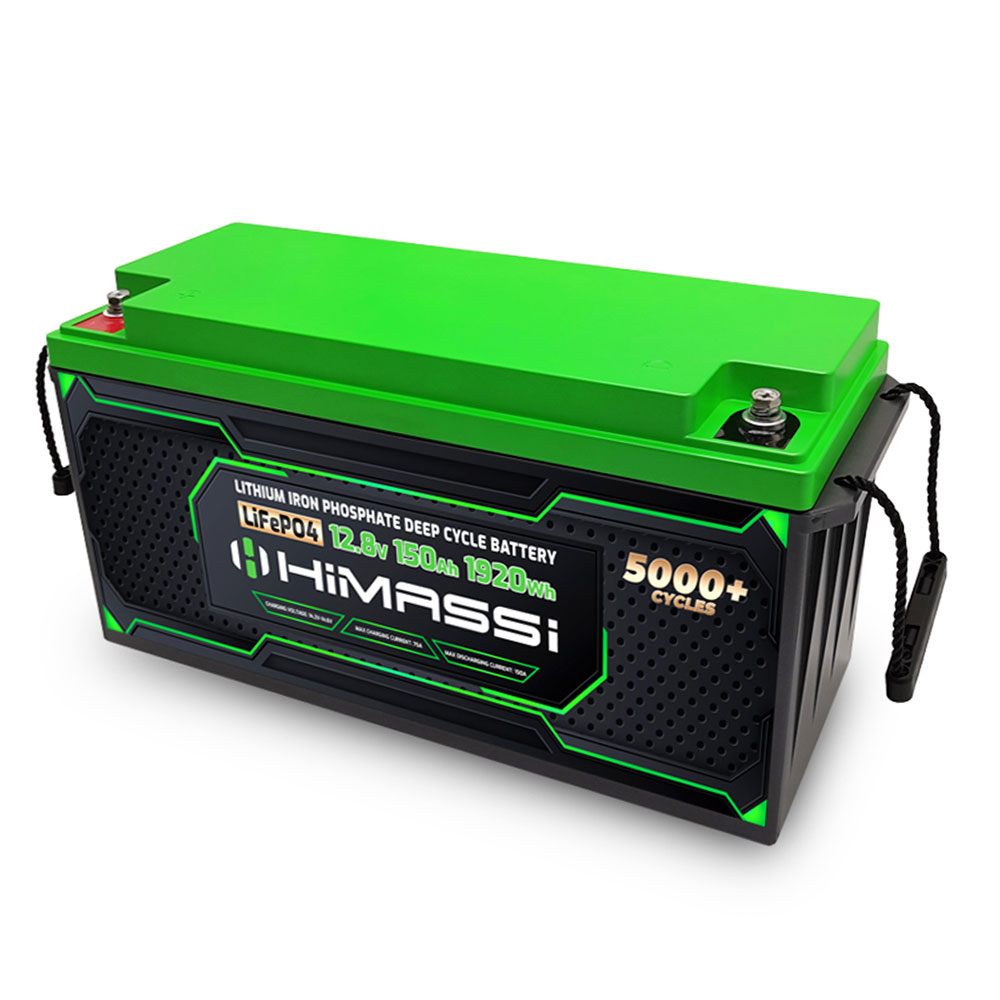

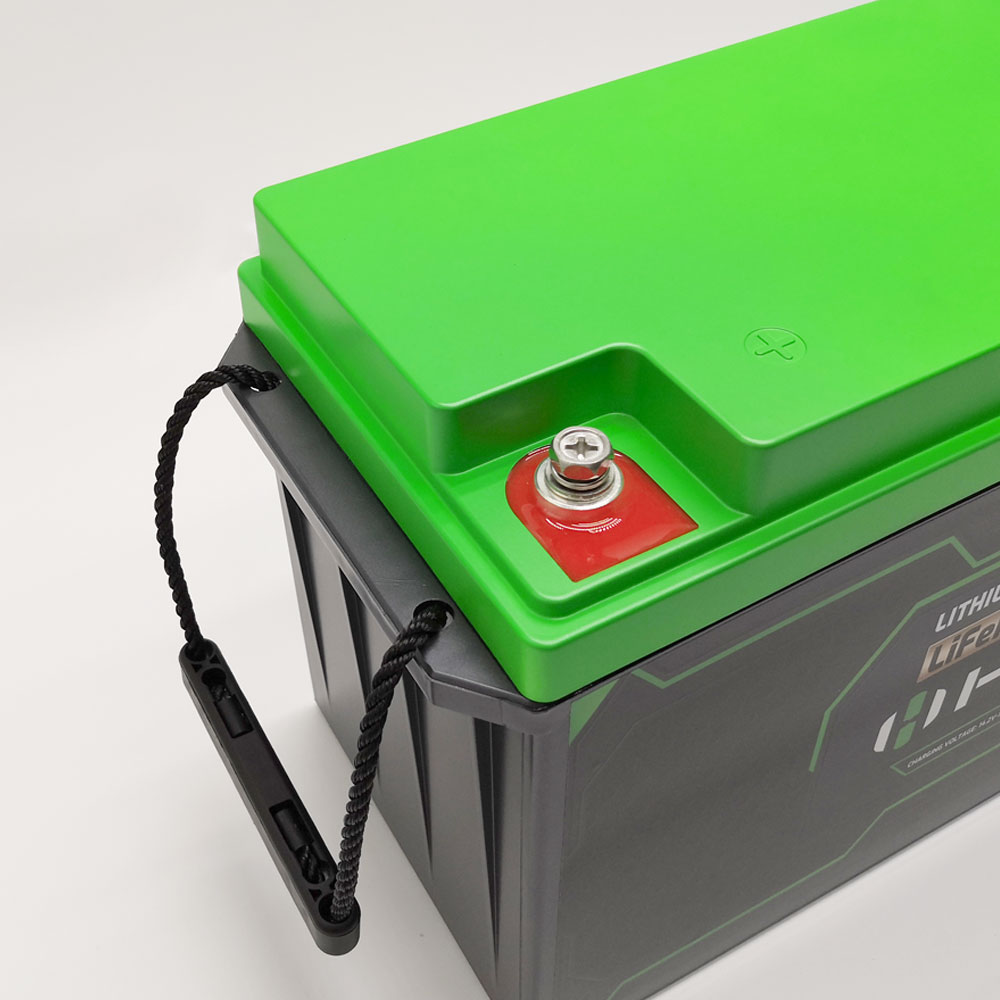

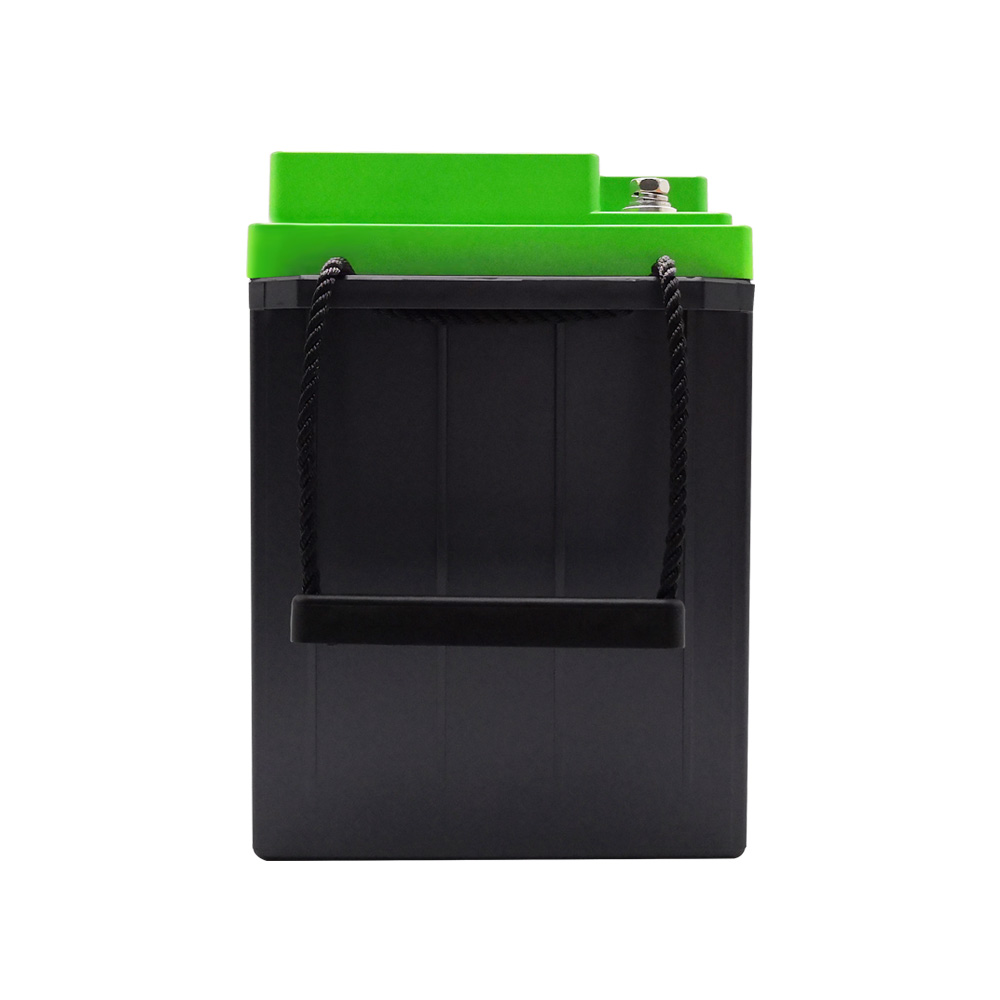

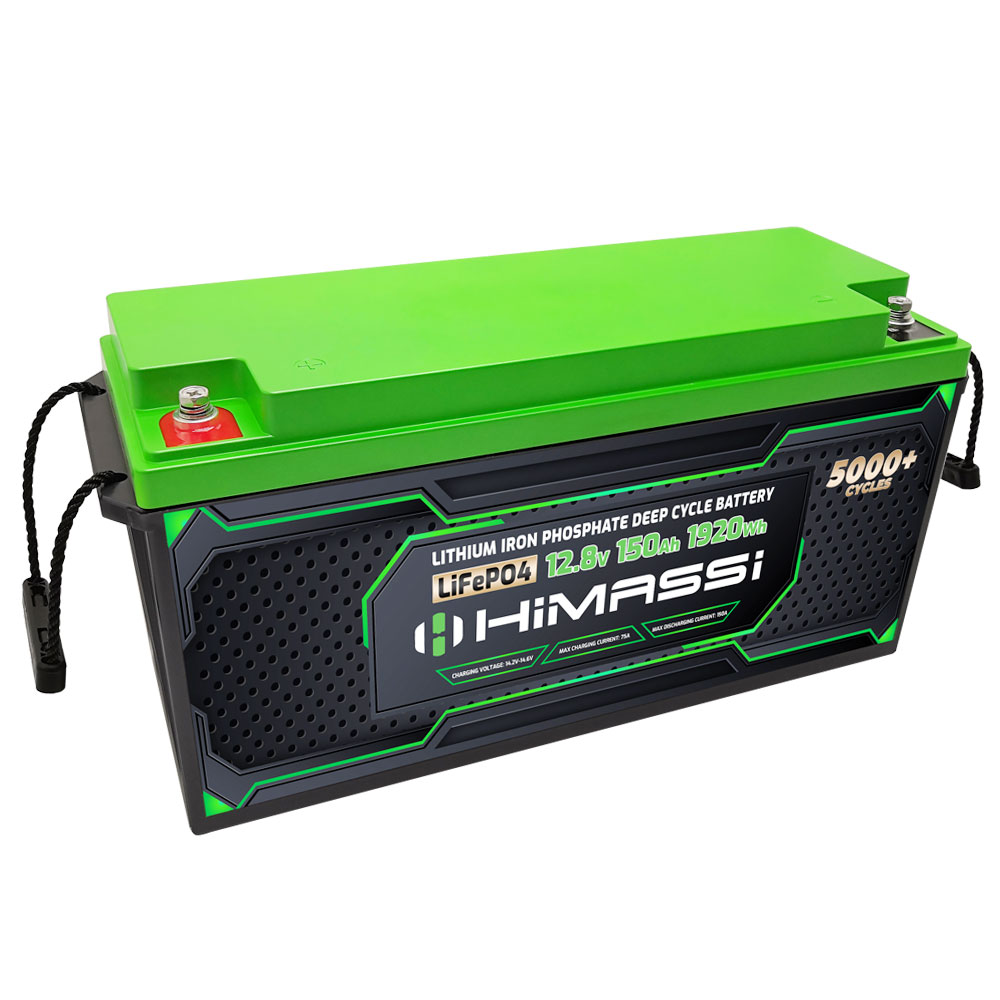

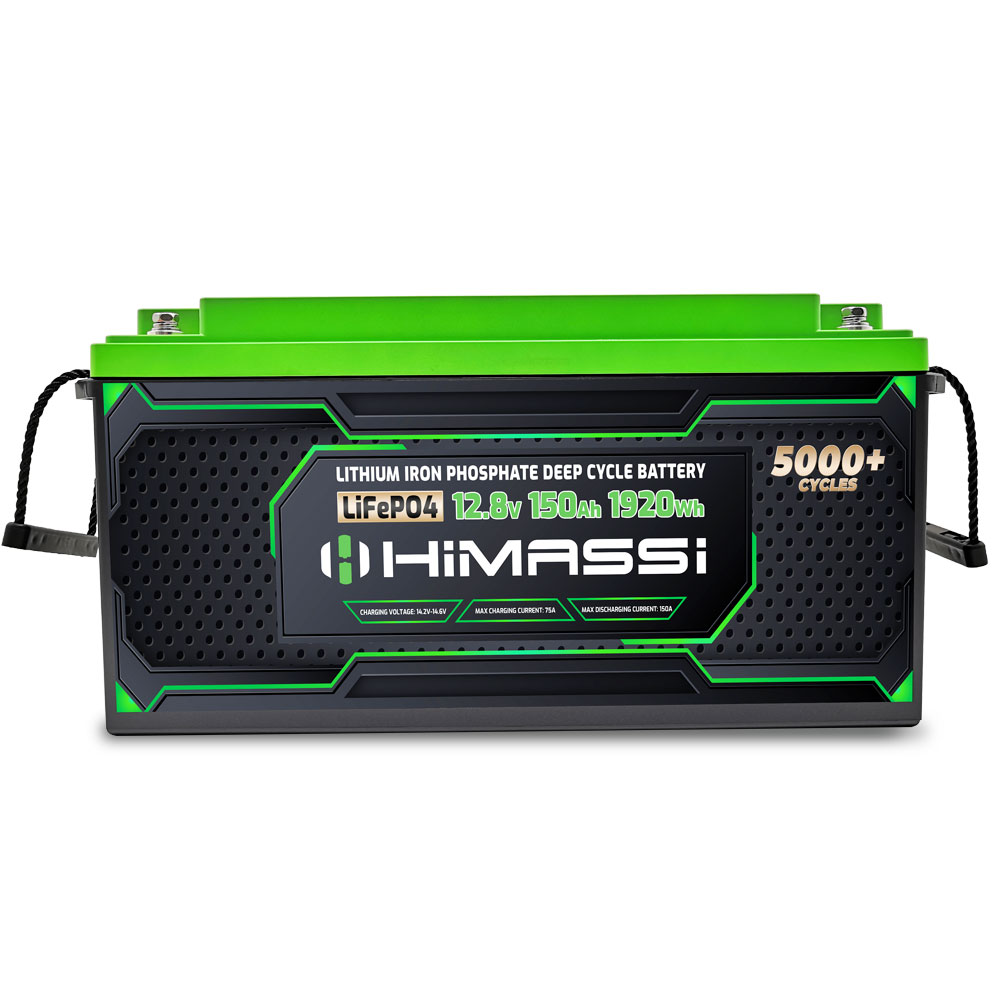

LiFePO4 Battery 12V 150Ah Lithium Battery 1920Wh
Nominal Voltage
12.8V
Nominal Capacity
150Ah
Energy
1920Wh
Cycle Life
>2000 cycles @0.2C 100%DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.2C
Efficiency of Discharge
96~99% @0.2C
BMS Functions
Over charge, over discharge, over current, short circuit and temperature protection
Charge Voltage
14.2-14.6V
Charge Mode
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Charge Current
30A
Max. Charge Current
75A
Standard Discharge Current
30A
Max Continuous Discharge Current
150A
Discharge Cut-off Voltage
10V±0.5V
Storage Temperature
-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class
IP65
Plastic Case
ABS
Approx. Dimensions
L483xW170xH240mm
Approx. Weight
19.1Kg
Frequently Asked Questions
Lithium iron phosphate deep cycle battery pack answers, if you do not find the answer you are looking for, please contact us.
We’ll get back to you within 24 hours.
1. How long will a 12V 150Ah battery last on a full charge?
The runtime of a 12V 150Ah battery depends on the load it’s powering. For example, if you are using a device that consumes 150 watts, the battery could last approximately 12 hours (assuming 100% depth of discharge). However, for optimal battery life, it’s recommended to avoid deep discharge.
2. What are the main applications for a 12V 150Ah battery?
A 12V 150Ah battery is widely used in off-grid solar systems, RVs, boats, electric vehicles, and backup power solutions. Its higher capacity makes it ideal for power-hungry applications that require long-lasting energy storage.
3. How long does it take to fully charge a 12V 150Ah LiFePO4 battery?
Charging time depends on the charger used. For instance, with a 20A charger, it would take around 7.5 to 8 hours to fully charge a 12V 150Ah battery. Using a higher-capacity charger can reduce charging time, but it’s important to ensure the charger is compatible with the battery type.
4. What is the expected lifespan of a 12V 150Ah LiFePO4 battery?
A 12V 150Ah LiFePO4 battery can last more than 3000 to 5000 cycles, depending on usage conditions. This can translate to 10-15 years of reliable performance, especially when used in proper conditions with moderate depth of discharge.
5. Can I connect a 12V 150Ah battery in series or parallel?
Yes, you can connect a 12V 150Ah battery in series or parallel depending on your energy needs. Connecting in series increases the voltage (e.g., two 12V batteries give 24V), while connecting in parallel increases the capacity (e.g., two 12V 150Ah batteries give 300Ah). Always follow the manufacturer’s instructions for safe installation.
