Nickel-metal hydride (NiMH) battery packs are widely used in consumer electronics, medical devices, power tools, and industrial applications due to their reliability, affordability, and environmentally friendly composition. Choosing the right NiMH battery pack requires careful consideration of voltage, capacity, discharge rates, and other technical parameters to ensure optimal performance. This guide will help you make an informed decision.
1. Understanding Your Device Requirements
Before selecting a NiMH battery pack, determine the power requirements of your device:
- Operating Voltage (V): Check the required voltage of your device.
- Power Consumption (W): Identify the device’s wattage rating.
- Maximum Current Draw (A): Ensure the battery pack can supply sufficient current.
- Expected Runtime: Calculate how long you need the battery to last per charge cycle.
2. Determining the Required Battery Pack Voltage
NiMH cells have a nominal voltage of 1.2V per cell. The total voltage of a NiMH battery pack is determined by the number of cells in series:
- 4.8V pack (4 cells) – Suitable for remote controls, small medical devices.

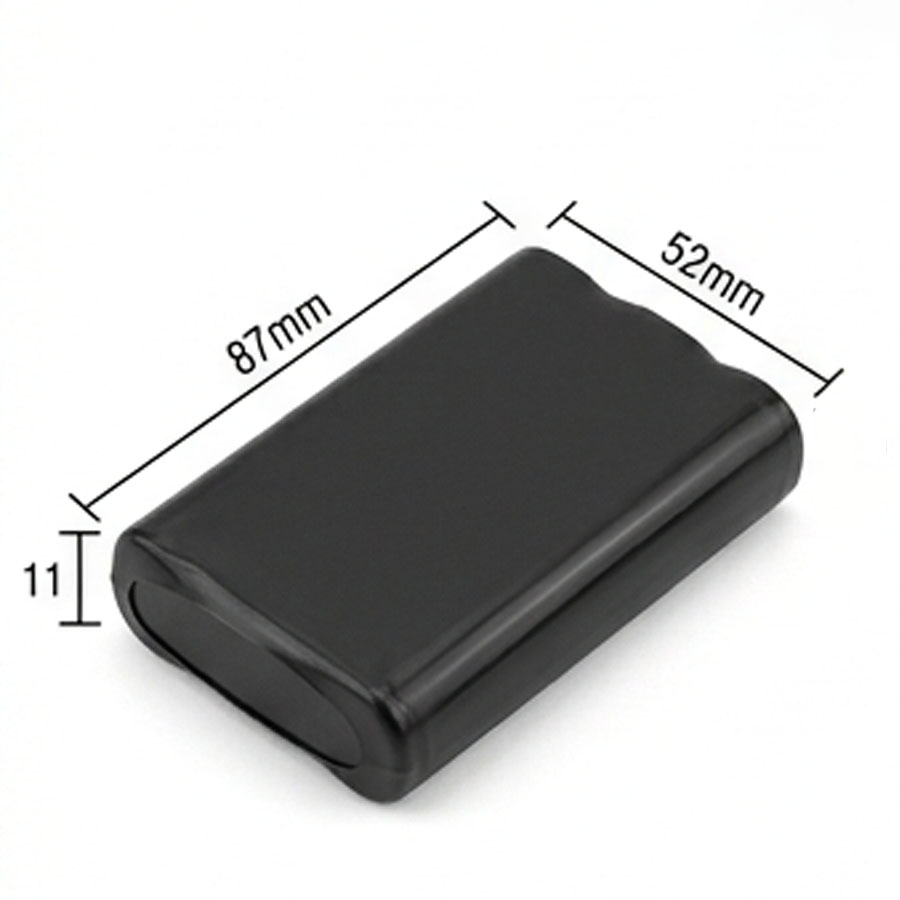

- 7.2V pack (6 cells) – Used in RC toys, power tools.
- 9.6V pack (8 cells) – Common in professional electronics.
- 12V pack (10 cells) – Often used for emergency lighting, robotics.
If your device requires a specific voltage, ensure the battery pack configuration matches the requirement. For applications needing precise voltage regulation, consider using a DC-DC converter.
3. Calculating the Required Battery Capacity (mAh or Ah)
The battery capacity determines how long the battery pack will power your device. It is measured in milliamp-hours (mAh) or amp-hours (Ah).
To estimate the required capacity: Capacity(Ah)=Device Power (W)×Operating Time (h)/Battery Voltage (V)
Example Calculation:
If you have a 12V NiMH battery pack and your device consumes 10W, and you want it to run for 10 hours: 10W×10h/12V=8.3Ah You should choose a battery pack with at least 8.3Ah capacity to meet the runtime requirement.
4. Evaluating Discharge Current Requirements
NiMH batteries have a maximum discharge rate that should not be exceeded. Most standard NiMH cells support discharge rates between 0.5C to 2C, where C is the battery capacity.
For example, a 4000mAh NiMH battery pack with a 1C discharge rate can provide 4A of continuous current. If your device requires higher current output, opt for high-drain NiMH cells designed for power tools and industrial applications.
5. Choosing the Right Type of NiMH Battery Pack
NiMH batteries come in different grades and designs:
- Standard NiMH Packs: Common for low-power applications (e.g., remote controls, toys, small medical devices).
- High-Discharge NiMH Packs: Suitable for RC cars, power tools, and robotics.
- Industrial NiMH Packs: Designed for longer cycle life and higher capacity (e.g., portable medical equipment, emergency lighting).
- Custom NiMH Packs: If your application has specific requirements, you can request custom voltage, capacity, or connector types from battery manufacturers.
6. Charging and Maintenance Best Practices
Proper charging and maintenance extend the lifespan of NiMH battery packs:
- Use a Smart Charger: Avoid overcharging, which reduces battery life. Smart chargers detect when the battery is fully charged and stop charging automatically.
- Avoid Deep Discharge: Fully discharging NiMH batteries frequently can shorten their lifespan. Recharge when capacity drops to about 20-30%.
- Storage Tips: If storing batteries for long periods, charge them to about 50% capacity and store in a cool, dry place.
- Battery Cycling: Occasionally cycle the battery by fully charging and discharging to maintain performance and reduce memory effect.
7. Case Studies: Selecting NiMH Battery Packs for Different Applications
1. Electric Shaver Battery Replacement
- Voltage: 2.4V (2x NiMH 1.2V cells)
- Capacity: 2000mAh
- Requirements: Compact size, reliable performance, and low self-discharge.
- Solution: Choose a high-quality NiMH 2.4V battery pack with a built-in safety circuit.
2. Portable Medical Equipment
- Voltage: 9.6V (8x NiMH 1.2V cells)
- Capacity: 5000mAh
- Requirements: Long runtime, stable voltage output, and durable cycle life.
- Solution: Select an industrial-grade NiMH pack with low self-discharge for extended usage.
3. Power Tool Battery Pack
- Voltage: 14.4V (12x NiMH 1.2V cells)
- Capacity: 3000mAh
- Requirements: High discharge rate to support heavy loads.
- Solution: Use high-drain NiMH cells capable of delivering a 10C discharge rate for power tool efficiency.
Choosing the right NiMH battery pack involves evaluating voltage, capacity, discharge rate, and specific application needs. Whether you need a battery pack for a small electronic device, industrial application, or high-power tool, understanding these factors ensures you select the best option for optimal performance and longevity.
If you require a custom NiMH battery pack, consider contacting Himax a professional battery manufacturer to design a solution tailored to your requirements.
